Instrument manufactured by:

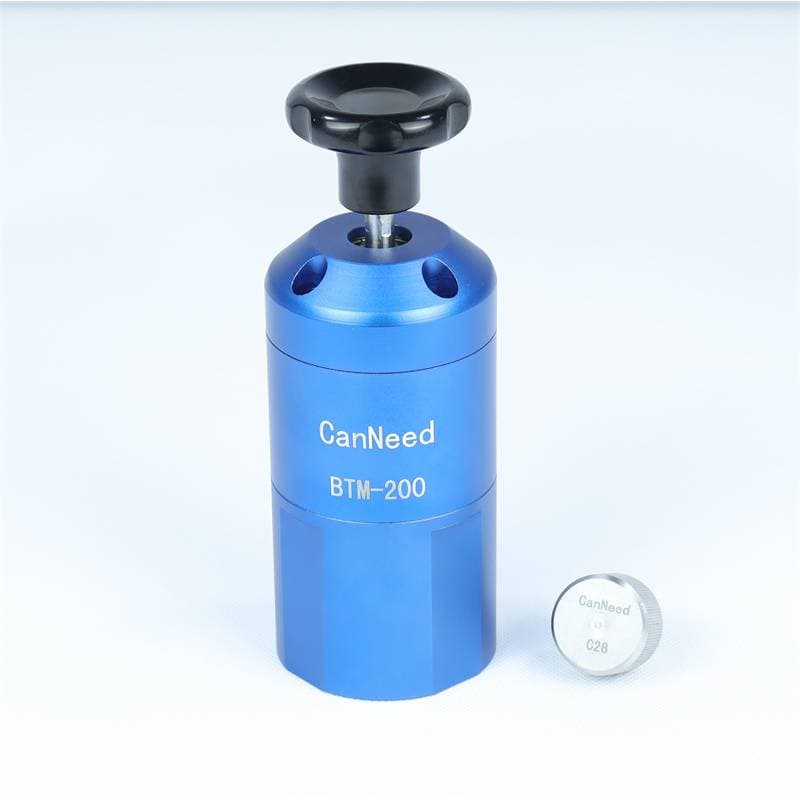

CanNeed-BTM-200
Standard Bottle of Torque Verification System
Similar to AT2E's BT-ETA-TORQUE-ECO
Torque verification system for PET bottle caps — constant magnetic force, auto-reset, 0.15% full-scale accuracy for calibrating torque testers and capping lines.
Request a quote
Technical specifications
| Detection Object | PET bottled beverages/PET bottles/preforms/plastic caps |
| Test Items | Torque/Torque |
| Testing Occasions | laboratory |
Applications
The CanNeed-BTM-200 Standard Bottle Torque Verification System utilizes constant magnetic force technology to provide precise calibration for torque testers and capping equipment. Ideal for food, beverage, and pharmaceutical production lines, this universal calibration tool ensures PET bottle capping consistency and is designed for rapid, automated resetting.
Advantages
- Integrated, maintenance-free design for simplified operation.
- Ergonomic, lightweight construction for ease of use in high-throughput environments.
- Versatile measurement range, compatible with various PET bottle sizes and project requirements.
Technical Parameters
- Accuracy: 0.15% full scale
- Dimensions: 75mm diameter; 175mm height
- Test Speed: 5 seconds per bottle
- Weight: 1.5kg
- Operating Environment: -10°C to 50°C; 90% relative humidity at 32°C
