Stress Cracking Tester
Similar to AT2E's SCT-PLC
Stress cracking tester for blow-molded PET bottles — 6 independent stations, 6-10 bar compressed air, isolates lye per station to prevent cross-contamination between samples.
| Detection Object | PET bottled beverages/PET bottles/preforms/plastic caps |
| Test Items | stress |
| Testing Occasions | laboratory |
Applications

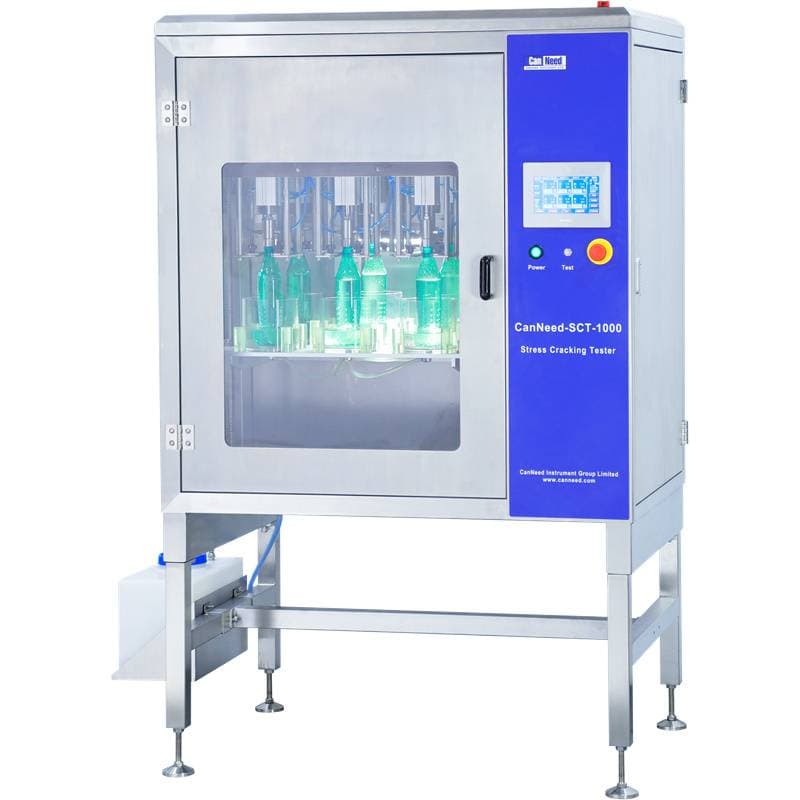

The CanNeed-SCT-1000 Stress Cracking Tester is a high-precision instrument designed to evaluate the stress crack resistance of blow-molded PET bottles. This tester simulates production line conditions, specifically the impact of lye lubrication on the base of PET containers.
By utilizing constant pressure testing with compressed air, the instrument maintains stable internal pressure while immersing the bottle base in lye to monitor for structural failure. The system features 6 independent test stations with automated water and lye injection, real-time pressure monitoring, and automated rupture detection, ensuring consistent and reliable results for quality control in the beverage packaging industry.
Advantages
l High-precision independent sensors for each station, allowing for simultaneous or individual testing;
l Independent lye test chambers prevent cross-contamination, ensuring accurate concentration levels;
l Individual intake valves allow for rapid isolation of leaking samples without interrupting other stations;
l Automated background data logging for streamlined reporting;
l Dual-stage pressure regulation ensures stable, clean, and dry air supply;
l Automated lye management system reduces manual handling and exposure to chemicals;
l Fast-clamping tooling with cylinder sealing prevents manual errors and ensures operator safety during bottle rupture;
l Adjustable double-screw lift mechanism accommodates various bottle heights;
l Integrated safety features include an explosion-proof observation window, automatic door locking during tests, and pressure-relief sensors.
Technical Parameters
- Measure range: Sample diameter 40-110mm, sample height 0-350mm (custom sizes available)
- Air supply: Dry compressed air at 6-10 bar
- Capacity: 6 stations (protective goggles required)
- Calibration: Precision gauge calibration for regulating valves
- Dimensions & Weight: 1400 x 850 x 1830 mm; 330 kg
- Operating environment: 0℃-40℃; ≤85% RH; 0.65-0.8 MPa air pressure
- Safety: 304 stainless steel cabinet; isolated electrical and pressurizing stations; automatic pressure relief on door opening
