Instrument manufactured by:
CanNeed-DT-100
Thread Depth Gauge
AT2E doesn't have a similar equipment
Thread depth gauge for aluminum bottle can caps, 0–5 mm range, 0.01 mm resolution, ±0.02 mm accuracy — ensures consistent closure fit.
Request a quote
Technical specifications
Applications

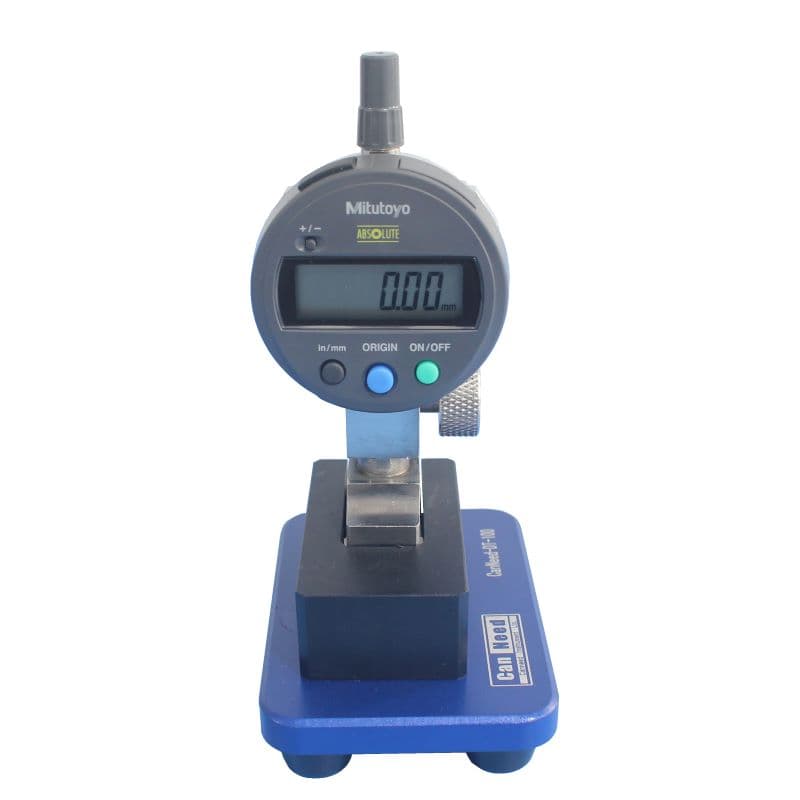

CanNeed-DT-100 Thread Depth Gauge is used to measure the thread depth on the caps of aluminum bottle cans, which can make the bottle can closure fit better with the caps.
The gauge assembles with a digital Mitutoyo meter and a calibration platform.
Technical Parameters
Measure range
0–5mm (Other ranges are available)
Resolution
0.01mm
Accuracy
±0.02mm
