Instrument manufactured by:

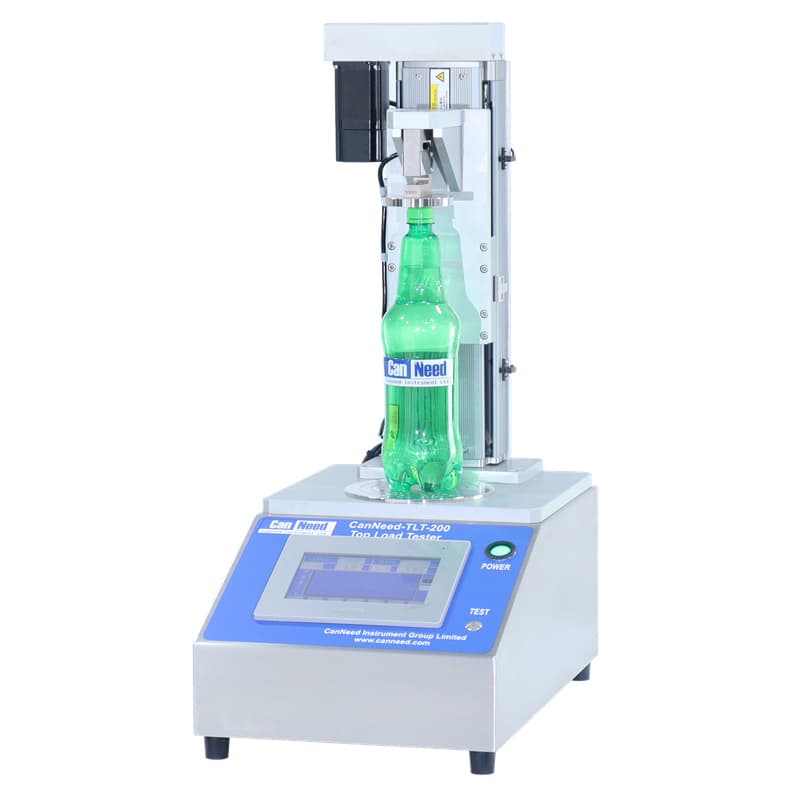

CanNeed-TLT-200
Top Load Tester
Top load tester measures compressive force up to 1000N with ±1.0% accuracy — ideal for bottle and container QC in food, beverage, and packaging lines.
Request a quotation
Technical specifications
| Detection Object | Cosmetics/drugs/bagged food, PET bottled beverages/PET bottles/preforms/plastic caps |
| Test Items | Tensile force/pressure bearing/vertical load/impact resistance |
| Testing Occasions | laboratory |
Applications
The CanNeed-TLT-200 Top Load Tester is a precision instrument designed to measure top load force, deformation, and side force strength in packaging. Ideal for quality control in the food & beverage and pharmaceutical industries, this Top Load Tester provides reliable data for product development and structural integrity testing. The unit features intuitive operation and low-maintenance design.
Technical Parameter
- Testing Capacity: 1000N
- Force Accuracy: Better than ±1.0%
- Force Unit: N
- Length Unit: mm
- Halting Mode: With the upper and lower limit safety setting, programming power and deformation setting, and test sample damage sensing
- Point Positioning Mode: Pre-set positioning function
- Machine Parts: Precision ball screw, imported high-precision sensor
- Machine Size: 250×400×800 mm (W×D×H)
- Machine Weight: About 25kg
