Instrument manufactured by:

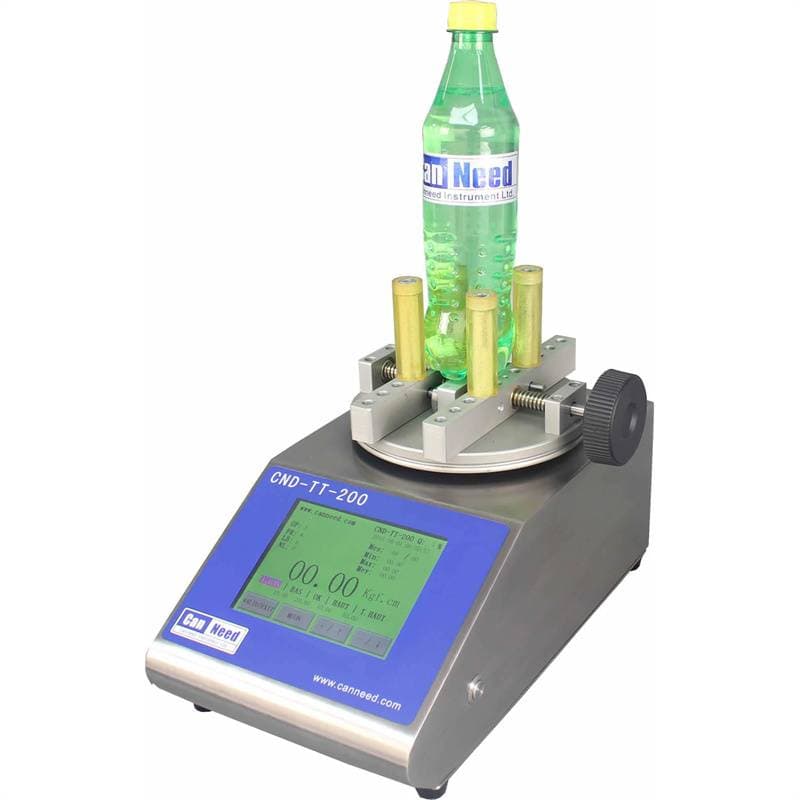

CanNeed-TT-200
Torque Tester
Torque tester for bottle caps, ±0.5% full-scale accuracy, IP64, multi-unit display, and RS232 output — ideal for pharma, food, and cosmetic QC lines.
Request a quotation
Technical specifications
Applications
The CanNeed-TT-200 Torque Tester is a professional-grade instrument designed for precise capping and removal torque testing in the food, beverage, cosmetic, pharmaceutical, and chemical industries.
Advantages
- High-Precision Measurement: Accuracy up to ±0.5% of full scale, outperforming standard ±1% testers.
- Versatile Data Management: Supports multiple units (Kgf.cm, Inch.lbs, daN.cm, N.cm, N.m) and stores up to 1,000 results with operator, product, and lot tracking.
- Robust Design: Features an IP64-rated stainless steel construction with a unique maze-type water-proof design for harsh production environments.
- Flexible Fixturing: Adjustable, quick-change cassette-type fixture accommodates various bottle shapes and dimensions.
- Advanced Connectivity: Equipped with dual RS-232 ports for simultaneous PC and mini-printer output.
- Non-Rigid Shaft: Minimizes measurement errors caused by lateral or top-down forces on the torque sensor.
Technical Specifications
- Measuring Range: 0.00 to 99.00 inch.lbs (High-accuracy mode: 0.000 to 4.500 inch.lbs)
- Accuracy: ±0.5% of full scale
- Protection Rating: IP64 (Stainless steel)
- Data Output: 2x RS-232 ports, Analog output
- Power: Rechargeable lithium battery / 220V, 50Hz
- Measuring Modes: Common, Peak Value, Peak Value + Memo
- Interface: Large touchscreen with multi-language support (English/Chinese)
