Vacuum resistance tester for PET bottles, -90 to 0 kPa range at 0.4% FS accuracy — digital gauge and universal bottle compatibility simplify QC checks.
| Detection Object | PET bottled beverages/PET bottles/preforms/plastic caps |
| Test Items | Pressure/pressure resistance |
| Testing Occasions | laboratory |

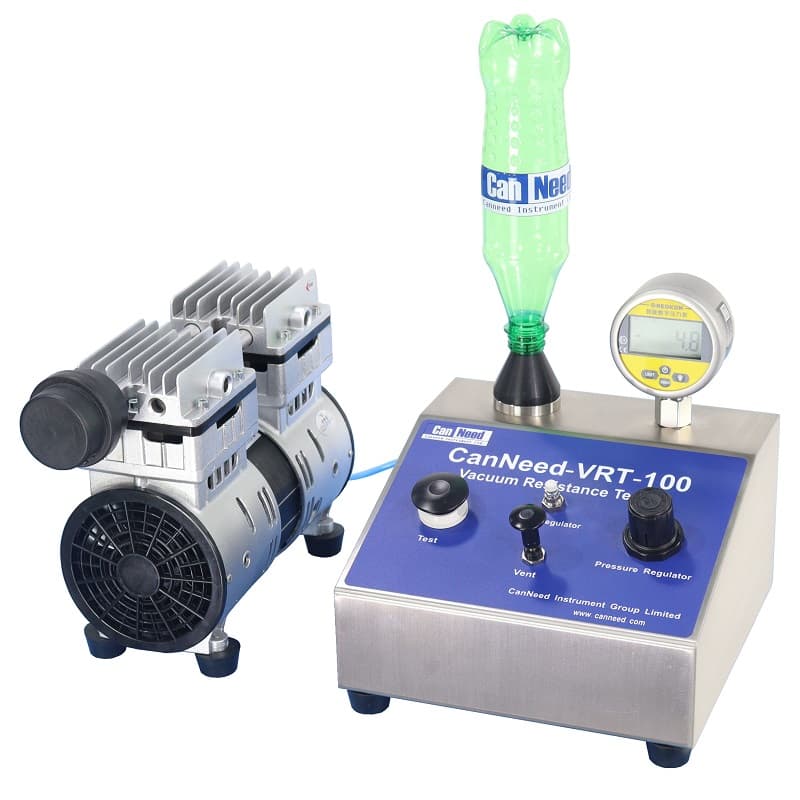

CanNeed-VRT-100 Vacuum Resistance Tester is used to test the vacuum deformation resistance of plastic bottles. By vacuuming the bottles to a certain value, so as to intuitively observe whether the bottle is deformed. The precision digital pressure gauge allows users to simply and clearly observe the real-time vacuum value.
1.Configure a high-precision pressure regulating valve, allows users to easily adjust the target vacuum value.
2.Digital vacuum pressure gauge allows users to simply and clearly observe the real-time vacuum value.
3.Simple operation, easy adjustment.
4.Compatible with all kinds of PET bottles, no change part is required.
Measure range and accuracy
Vacuum pressure range: -90kpa to 0kpa
Accuracy: 0.4%FS
Sample type
For all PET bottle types
Place sample mode
Manual placing samples
Power input
220V/50Hz, with vacuum pump
Tester size, Net weight and Material
L250*W250*H160mm，4kg, Chassis Material: Carbon steel painting Q235
Environmental requirement
For indoor use, RH(relative air humidity) ≤ 85%，Temperature：0℃-40℃
