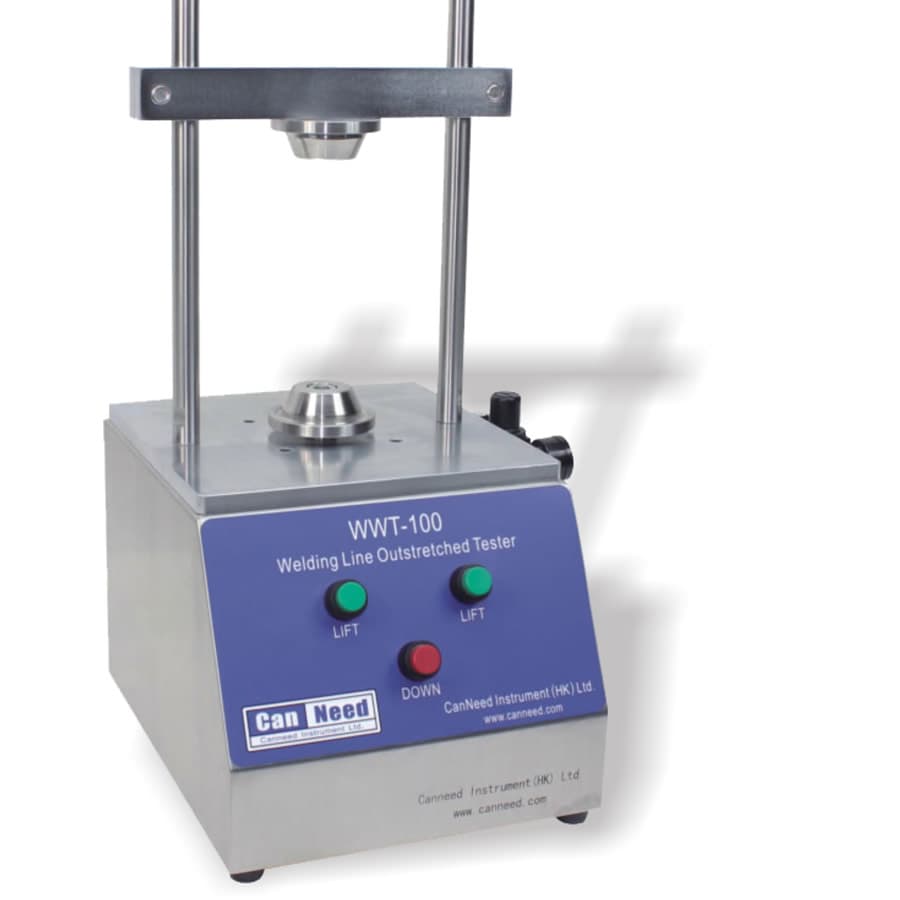

CanNeed-WWT-100
Welding Line Outstretched Tester
AT2E doesn't have a similar equipment
Welding line integrity tester for 3-piece cans, 57–90 mm dia., pneumatic at 6 bar — reveals flange weld breaches fast.
Request a quote
Technical specifications
| Detection Object | Three-piece can/spray can/coating |
| Test Items | Tensile force/pressure bearing/vertical load/impact resistance |
| Testing Occasions | laboratory |
Applications
The CanNeed-WWT-100 Welding Line Integrity Tester is designed for quality control in food and beverage packaging, specifically for testing the flange point welding integrality of 3-piece cans.
To operate, place the can body onto the pneumatic fixture. The integrated cylinder drives the pressure board to curl the flange to a 10 mm depth. Once the cycle is complete, the operator can inspect the weld for breaches or structural failures, ensuring consistent production quality.
Technical Parameters
- Air supply: 6 bar
- Sample diameter range: 57-90 mm (external)
- Dimensions: 500 × 460 × 700 mm
- Net weight: 20 kg
