X-Ray Automatic Seam Scanner(Non-destructive)
X-ray non-destructive double seam scanner measures seam length, hook, overlap, and tightness to ±0.01 mm — no sample destruction, automatic pass/fail judgment.
| Detection Object | Canned beer/canned beverages/canned food, Three-piece can/spray can/coating |
| Test Items | Double Seam |
| Testing Occasions | laboratory |
Applications
The Seam-X®-Lab automatic X-ray seam scanner provides non-destructive, high-precision measurement for food and beverage canning lines. It accurately measures seam dimensions, tightness, and internal seam formation without damaging samples.

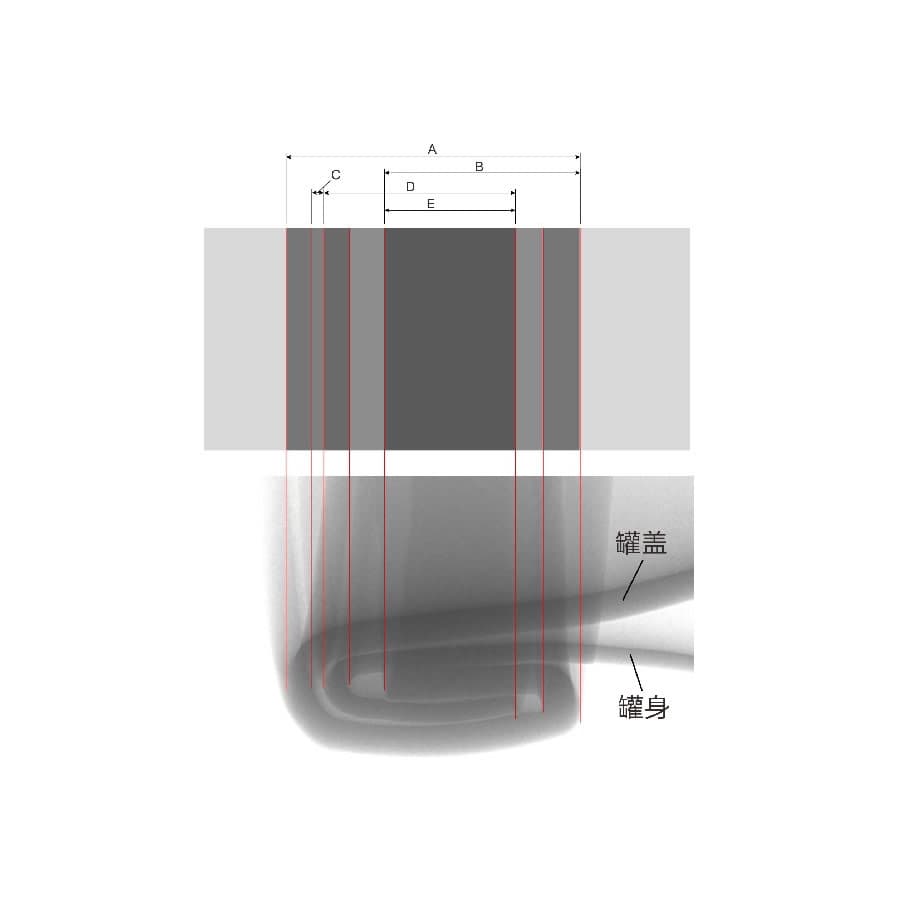

Measure Items: Seam Length, Body Hook, End Hook, Overlap, %Overlap, Seam Gap, %Body Hook Butting, %End Hook Butting, %Tightness, and actual seam formation. The system identifies double seam integrity across various material combinations, including Aluminum/Aluminum, Tin/Tin, and Tin/Aluminum.
The Seam-X®-Lab integrates with seam thickness and countersink gauges to form a comprehensive double seam quality control system.
Advantages
- Non-destructive testing: Preserves samples, reduces waste, and lowers operational costs.
- High Precision: Automated measurement eliminates manual error with 0.001 mm resolution.
- Safety Certified: Complies with international X-ray radiation protection standards (0.08mSV/year).
- Efficiency: Features 360° scanning, automatic pass/fail judgment, and direct SPC data integration.
- Versatility: Accommodates can diameters from 48 mm to 153 mm and heights up to 300 mm.
Technical Parameters
Sample Range: Can Diameter: 48–153 mm; Can Height: 50–300 mm.
Accuracy: Seam Dimension: +/- 0.01 mm; Tightness: +/- 5%.
Resolution: Seam Dimension: 0.001 mm; Tightness: 1%.
Connectivity: Ethernet, ASCII, TXT, SQL, DBI.
Power: 100-240VAC, 50/60 Hz.
Dimensions/Weight: 1500×1000×1900mm; Approx. 650kg.
