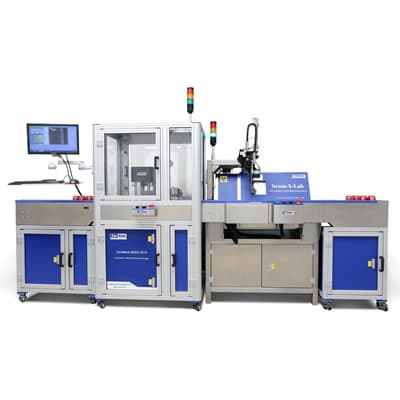

X-Ray Automatic Seam Scanner (Non-destructive)

Applications

The Seam-X®-Line Automatic Seam Scanner utilizes advanced non-destructive X-ray technology to ensure precision seam quality control. Designed for food and beverage packaging, it is ideal for aluminium, steel, and composite cans. When integrated with a conveyor system, the unit enables automated sampling for both laboratory environments and high-speed production lines.

Advantages

● Non-destructive measurement eliminates sample waste and associated disposal costs
● High-frequency sampling reduces the risk of batch isolation and minimizes scrap
● 360-degree full-scan capability ensures no blind spots in seam integrity
● Automated chuck tracking identifies and isolates unqualified products in real-time
● Eliminates manual measurement errors for consistent, repeatable results
● Compliant with international safety standards for X-ray equipment

Technical Specifications

● Measurement Accuracy: 0.01mm
● Throughput: 1 can per minute (approx. 1,320 cans/day at 22-hour operation)
● Operation Modes: Seam-X-Lab (manual) and Seam-X-Line (automatic)
● Automation: Automatic door operation, measurement, and pass/fail judgment
● Seam-X-Lab Dimensions: 900 x 550 x 650 mm | Weight: 300kg
● Seam-X-Line Dimensions: 3000 x 2000 x 2200 mm | Weight: 500kg
