X-Ray Fully Automatic Seam Scanner(non-destructive)

Applications

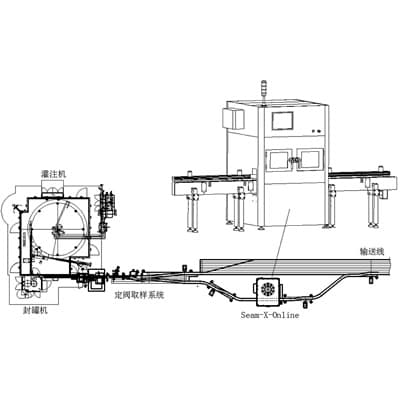

The Seam-X®-On-line X-Ray Automatic Seam Scanner provides non-destructive, high-speed measurement of double seam quality for aluminum, steel, and composite cans. Designed for integration directly into food and beverage production lines, this automated system improves sampling frequency, reduces waste, and eliminates the need for destructive cutting methods.

Measure Items: Seam Length, Body Hook, End Hook, Overlap, %Overlap, Seam Gap, %Body Hook Butting, and %End Hook Butting. Compatible with Aluminum/Aluminum and Tin/Tin can combinations. The Seam-X®-On-Line can be integrated with seam thickness and countersink gauges to form a complete measurement system, with optional identification sampling to track results back to specific seamer heads.

Advantages

• Non-Destructive Inspection: Eliminates sample waste and reduces sewage treatment costs.
• Automated Efficiency: High-speed, 360° scanning with auto-pass/fail rejection to minimize human error.
• Production Insight: Real-time data storage in SPC systems with the ability to track defects to specific seamer heads.
• Safety Certified: Complies with third-party X-ray radiation protection standards (0.08mSV/year).
• High Precision: Outstanding Repeatability and Reproducibility (R&R) with 0.001 mm resolution.

Technical Parameters

Sample Materials: Aluminum & Aluminum; Tin & Tin
Sample Sizes: Diameter: 200 (50mm)–211 (67 mm); Height: ≤168mm
Accuracy: +/- 0.01 mm
Resolution: 0.001 mm
Data Output: Ethernet, ASCII, TXT, SQL, DBI
Power Supply: 100-240VAC, 50/60 Hz
Air Supply: 0.4-0.6MPa
Dimensions: L1400 x W1500 x H2000mm
Weight: Approx. 2000kg
